Distributed Tracing

rag_control integrates with OpenTelemetry for distributed tracing, providing visibility into request execution flow and performance bottlenecks.

Overview​

Distributed tracing tracks:

  • Complete request lifecycle
  • Stage-by-stage execution
  • Latency at each stage
  • External service calls
  • Errors and exceptions

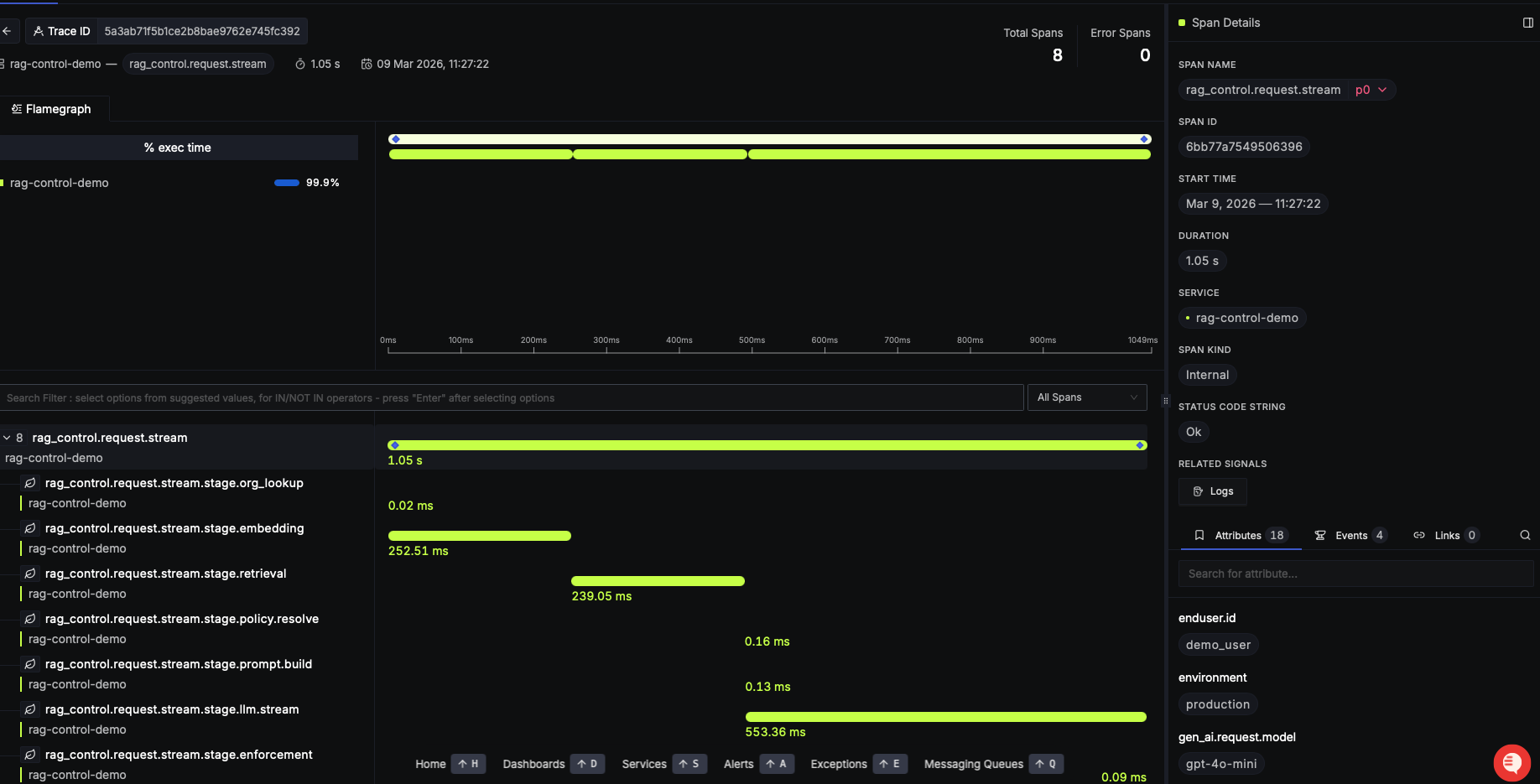

rag_control Distributed Tracing

Span Hierarchy​

Requests create a nested span hierarchy. The root span is rag_control.request.<mode> where mode is either run or stream. Child spans follow the pattern rag_control.request.<mode>.stage.<stage_name>:

rag_control.request.run (or .stream)
├── rag_control.request.run.stage.org_lookup
├── rag_control.request.run.stage.policy.resolve
├── rag_control.request.run.stage.embedding
├── rag_control.request.run.stage.retrieval
├── rag_control.request.run.stage.resolve_deny
├── rag_control.request.run.stage.prompt.build
├── rag_control.request.run.stage.llm.generate (or .llm.stream)
└── rag_control.request.run.stage.enforcement

Span Attributes​

Each span includes relevant attributes:

Root Request Span​

rag_control.request.run (or .stream)
├── request_id: "550e8400-e29b-41d4-a716-446655440000"
├── mode: "run" | "stream"
├── org_id: "acme_corp"
├── user_id: "user-123"
└── status: "ok" | "error"

Organization Lookup Span​

rag_control.request.run.stage.org_lookup
├── org_id: "acme_corp"
└── stage_latency_ms: 2

Query Embedding Span​

rag_control.request.run.stage.embedding
├── embedding_model: "text-embedding-ada-002"
├── embedding_dimensions: 1536
└── stage_latency_ms: 350

Document Retrieval Span​

rag_control.request.run.stage.retrieval
├── vector_index: "qdrant" (or other vector store)
├── returned: 5
└── stage_latency_ms: 75

Policy Resolution Span​

rag_control.request.run.stage.policy.resolve
├── policy_name: "strict_citations"
└── stage_latency_ms: 5

Deny Rule Resolution Span​

rag_control.request.run.stage.resolve_deny
└── stage_latency_ms: 1

LLM Generation Span​

For run mode:

rag_control.request.run.stage.llm.generate
├── llm_model: "gpt-4"
├── temperature: 0.0
├── max_output_tokens: 512
├── prompt_tokens: 150
├── completion_tokens: 95
├── total_tokens: 245
└── stage_latency_ms: 2000

For stream mode:

rag_control.request.stream.stage.llm.stream
├── llm_model: "gpt-4"
├── temperature: 0.0
├── max_output_tokens: 512
├── prompt_tokens: 150
├── completion_tokens: 95
├── total_tokens: 245
└── stage_latency_ms: 2000

Prompt Building Span​

rag_control.request.run.stage.prompt.build
├── message_count: 3
└── stage_latency_ms: 15

Enforcement Span​

rag_control.request.run.stage.enforcement
├── policy_name: "strict_citations"
└── stage_latency_ms: 40

Tracing Setup​

Initialize with OpenTelemetry​

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.exporter.jaeger.thrift import JaegerExporter
from rag_control import RAGControl
from rag_control.observability import OpenTelemetryTracer

# Setup OpenTelemetry exporter
jaeger_exporter = JaegerExporter(
    agent_host_name="localhost",
    agent_port=6831,
)

trace_provider = TracerProvider()
trace_provider.add_span_processor(
    BatchSpanProcessor(jaeger_exporter)
)
trace.set_tracer_provider(trace_provider)

# Initialize rag_control with tracing
tracer = OpenTelemetryTracer()

engine = RAGControl(
    llm=llm_adapter,
    query_embedding=embedding_adapter,
    vector_store=vector_store_adapter,
    config_path="policy_config.yaml",
    tracer=tracer
)

Tracer Implementations​

rag_control supports three tracing implementations:

NoOpTracer (If no tracing is needed)​

from rag_control.observability.tracing import NoOpTracer

tracer = NoOpTracer()
engine = RAGControl(
    llm=llm_adapter,
    query_embedding=embedding_adapter,
    vector_store=vector_store_adapter,
    config_path="policy_config.yaml",
    tracer=tracer
)

StructlogTracer (JSON structured logging)​

from rag_control.observability.tracing import StructlogTracer

tracer = StructlogTracer()
engine = RAGControl(
    llm=llm_adapter,
    query_embedding=embedding_adapter,
    vector_store=vector_store_adapter,
    config_path="policy_config.yaml",
    tracer=tracer
)
from rag_control.observability.tracing import OpenTelemetryTracer

tracer = OpenTelemetryTracer()
engine = RAGControl(
    llm=llm_adapter,
    query_embedding=embedding_adapter,
    vector_store=vector_store_adapter,
    config_path="policy_config.yaml",
    tracer=tracer
)

Default Tracer Selection​

If you don't specify a tracer when creating RAGControl, it automatically selects based on what's configured:

  1. Checks if OpenTelemetry tracing is configured via otel_trace.get_tracer_provider()
  2. Uses OpenTelemetryTracer if OpenTelemetry SDK is detected
  3. Falls back to StructlogTracer if OpenTelemetry is not configured

This ensures tracing always works: if you've set up OpenTelemetry in your application, rag_control will use it. Otherwise, traces are recorded as structured JSON logs.

from rag_control.core.engine import RAGControl

# Auto-selects tracer based on environment
engine = RAGControl(
    llm=llm_adapter,
    query_embedding=embedding_adapter,
    vector_store=vector_store_adapter,
    config_path="policy_config.yaml",
    # tracer omitted - uses default behavior
)

Fallback behavior:

  • If OpenTelemetry is configured globally → OpenTelemetryTracer
  • If OpenTelemetry is not configured → StructlogTracer (JSON logs)

Trace Correlation​

Traces are automatically correlated with:

  • Request ID: Unique per request
  • User ID: From user context
  • Organization ID: From user context
  • Span Context: OpenTelemetry context propagation

Error Handling in Traces​

Tracing is designed to never fail or affect request processing. All tracer operations are exception-safe:

  • If a span fails to start, a NoOp span is returned that silently accepts all operations
  • If span attributes cannot be set, the tracer continues without error
  • If context propagation fails, execution continues normally

This design ensures observability never impacts request latency or reliability.
